Two Configuration Options
Battery Trailer: silent, low signature operations
A battery-only mobile power system for noise and heat signature-sensitive operations where fuel delivery and generator runtime must be minimized.
Battery Trailer Components
- Battery modules
- PCS unit
- HVAC unit
- PDU with AC sockets
- Trailer platform
Hybrid Trailer: extended endurance with diesel support
A battery-buffered system with an integrated diesel engine for longer missions, and resilience when refuel is possible but continuous generator runtime is undesirable.
Hybrid Trailer Components
- Battery modules and PCS
- Diesel motor and accessories
- PDU
- HVAC
- Trailer platform
Mission Applications
- Forward staging areas (Temporary power distribution when power infrastructure is not yet established)
- Command post and communications (Stable power for radios, servers, networking, and communications systems)
- Medical support (Guaranteed power continuity for clinical equipment, shelters, refrigeration, sterilization, and lighting)
- Training ranges (Rapid setup/tear-down for instrumentation, targets, safety systems, and various other electronics)
- Island or remote operations (Reduced dependence on constant fuel runs, and subpar infrastructure)
- Critical infrastructure backup (Resilient 400V power where grid reliability is degraded or intermittent)
How The System Works

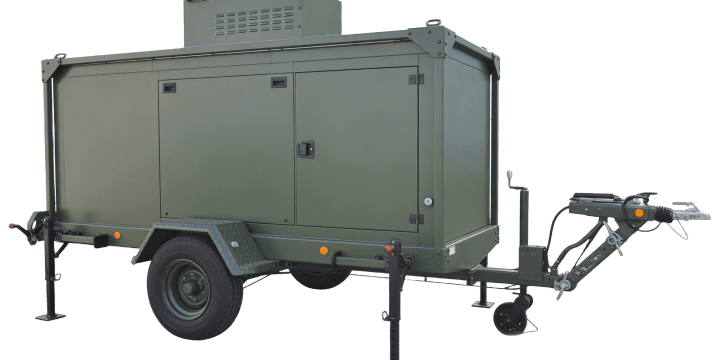

1. Deploy
Position the trailer at the mission site. No permanent foundations required.
2. Connect
Connect grid input if available and connect outputs to the load distribution and PDU.

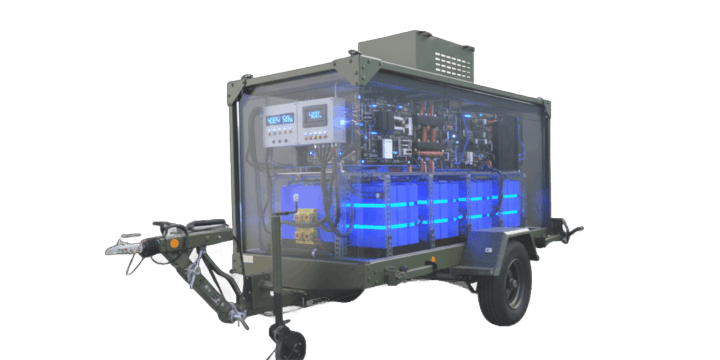

3. Operate
Stable 400V/50Hz power with battery buffering to protect sensitive equipment.

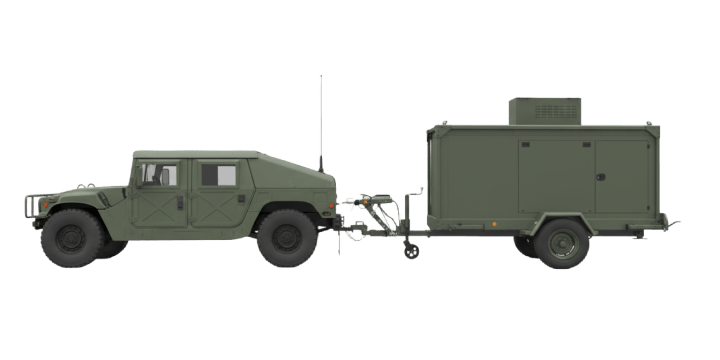

4. Redeploy
When the mission moves, pack down and redeploy to the next site.
Key Components
Battery Trailer
Standard Reference Specifications
- Output power (reference): 30 kVA
- Battery capacity (reference): 60 kWh
- Output: 400V, 50Hz
- Scalable power and capacity to match mission loads and runtime targets
Hybrid Trailer
Standard Reference Specifications
- Output power (reference): 30 kVA
- Battery capacity (reference): 40 kWh + diesel hybrid operation
- Output: 400V, 50Hz
- Battery-buffered for extended operations, minimizing generator runtime
Operations and Maintenance
Designed for mission tempo. TellCo provides commissioning, training, preventive maintenance programs, and service planning.
- Preventive maintenance cycles based on usage and environment
- Spare parts planning for deployments and long missions
- Operator training and standard operating procedures
- Optional remote support workflows for deployed systems
Objective: High uptime with minimal field intervention.
Core Specifications
These are the baseline technical points. Expanded specifications will be published as the configuration options finalize.
Contact us to request full technical specifications.
| Category | Battery Trailer | Hybrid Trailer |
|---|---|---|
| Input voltage | 400V / 50Hz (grid) | 400V / 50Hz (grid) |
| Output voltage | 400V / 50Hz (loads) | 400V / 50Hz (loads) |
| Output power | Scalable, 30 kVA standard reference | Scalable, 30 kVA standard reference |
| Battery capacity | Scalable, 60 kWh standard reference | Scalable, 40 kWh standard reference |
| Hybrid operation | Battery only | Diesel engine enabled hybrid operation |
| Durability | Anti-vibration structure for long service life | Anti-vibration structure for long service life |
